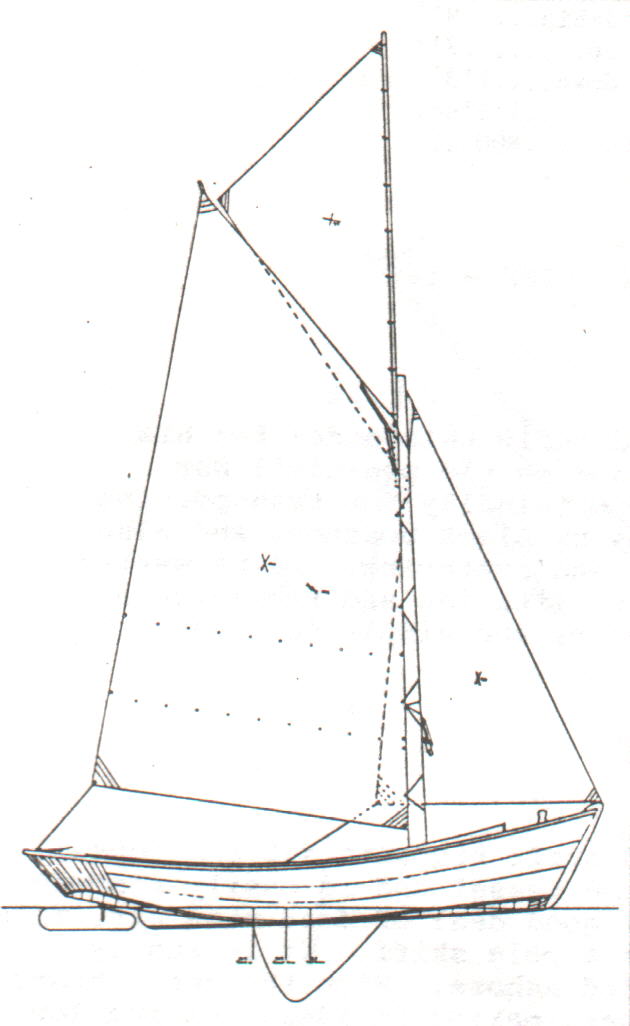

19' Core Sound Sharpie

Featured in WoodenBoat Magazine #35

$100.00

(also avail. 29' w/cabin, $120.00)

Particulars:
L.O.A. ............... 19'
L.W.L. ............... 13'8''
Beam O.A. ............ 7'
W.L. ............... 5'6''
L.B.(W.L.)............ 2.29
Draft c.b. up......... 8
c.b. down............. 3'
Displacement .........915 lbs
Sail Area (2 lowers)..184'sq.

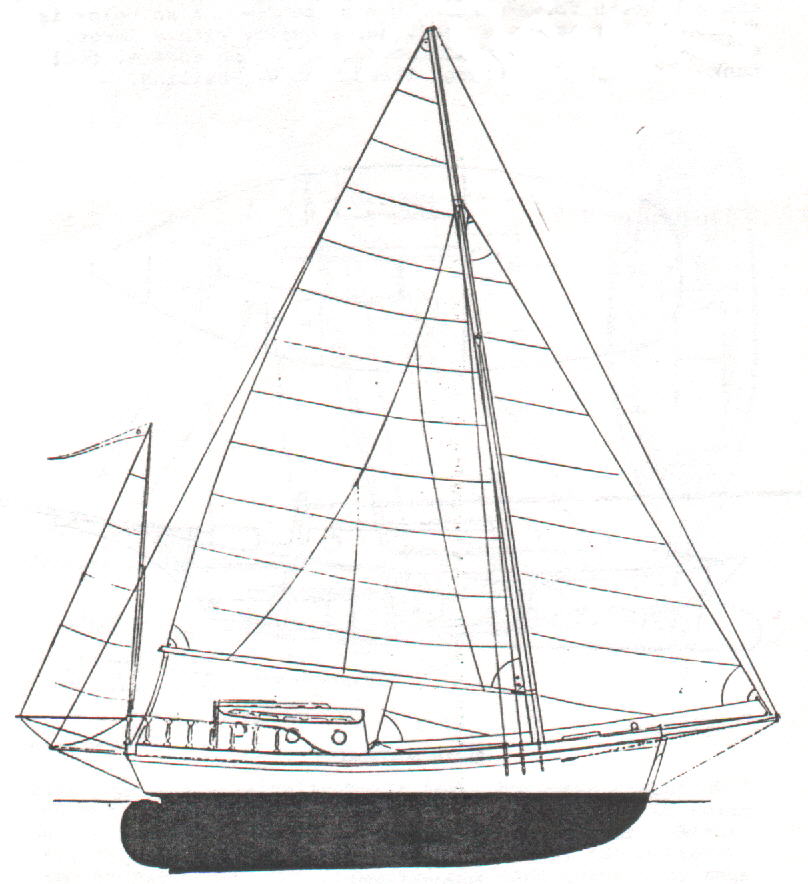

30' Cargo Sloop/Yawl

$150.00

Particulars:
L.O.A. ................ 36'
L.O.D. ................ 30'
L.W.L. ...............27'6''
Beam O.A. ..............10'
W.L. ................... 9'
L/B (W.L.).............3.05
Draft .................. 4'
Displacement ....16,040 lb.
Sail Area, Sloop ...630'sq.
Sail Area, Yawl ....681'sq.

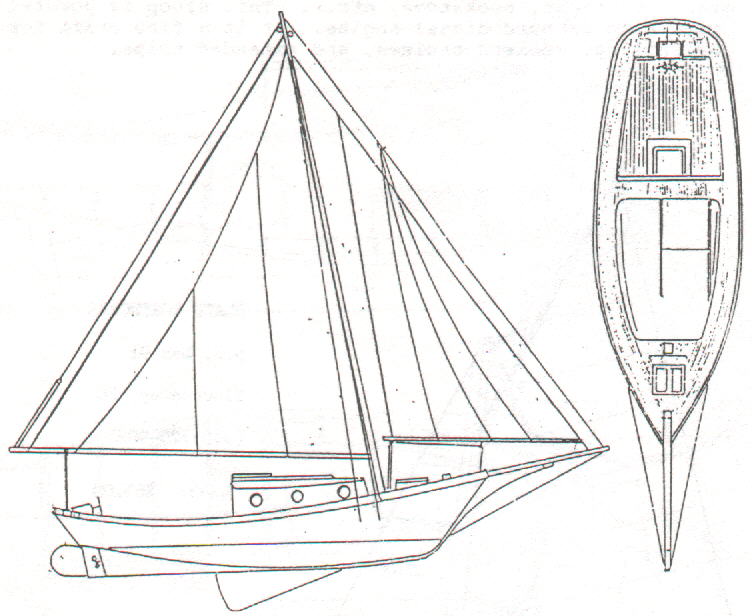

29' Skipjack

Plans Unavailable

L.O.D. .................... 28'
L.O.A. .................... 38'
L.W.L. .................... 24'
Beam ...................... 10'
B.W.L. .................... 8'8''
Freeboard, bow ............ 4'
stern ..................... 2'
Draft, c.b. up ............ 2'4''
c.b. down ................. 4'6''
Sail area ............... 439 sq'
Displacement .......... 7,000 lbs
L/B (W/L) ................. 2.79
P.P.I. .................. 800 lb.
